Click on an image to automatically scroll to the products.



Ball Motor Control
Boxes and Kits



Ball accelerator/booster motor control boxes and kits. Ball lift motor control boxes and kits.



Ball Triggering



Infrared ball triggering for your "A" or "A-2" pinsetter with auto score integration.



Foul Units



Various foul units for

your Brunswick center



Infrared Ball Detects



Infrared ball detects for

AS-80, AS-90, Framworx, and Vector scoring



Various Products
"A" & "A-2"



Various products and

parts for your Brunswick

"A" and "A-2" pinsetter



Ball Accelerator/Booster and
Ball Lift Motor Control Boxes & Kits





COMMANDER SERIES 1 BALL ACCELERATOR/ BOOSTER MOTOR CONTROL BOX



  • Solid-state switching
  • No more burned up points or sticking relays
  • Easy installation via screw terminal blocks
  • Fits in OEM location between pinsetters




Product ID: BTC-S1/ACC. . . .$320.00

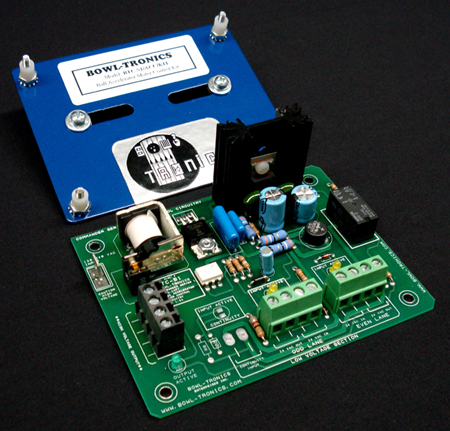

COMMANDER SERIES 1 ACCELERATOR/ BOOSTER MOTOR CONTROL KIT



  • Solid-state switching
  • No more burned up points or sticking relays
  • Easy installation via screw terminal blocks
  • Utilizes original accelerator/booster chassis to save you money



Product ID: BTC-S1/ACC/KIT. . . .$205.00



COMMANDER SERIES 1 BALL LIFT MOTOR CONTROL BOX



  • Solid-state switching
  • No more burned up points or sticking relays
  • Easy installation via screw terminal blocks
  • Ball lift motor control chassis can be custom made for any application



Product ID: BTC-S1/BRC. . .Prices start $295.00

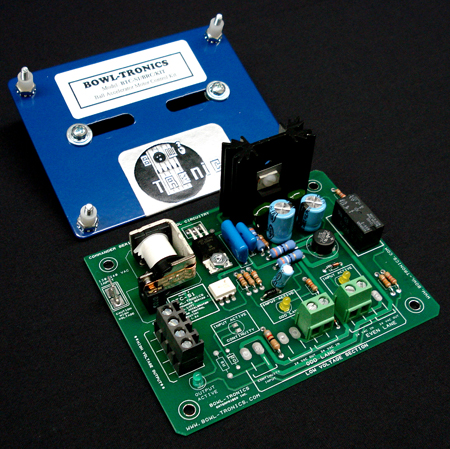

COMMANDER SERIES 1 BALL LIFT MOTOR CONTROL KIT



  • Solid-state switching
  • No more burned up points or sticking relays
  • Easy installation via screw terminal blocks
  • Utilizes original chassis to save you money





Product ID: BTC-S1/BRC/KIT. . . .$205.00



Ball Triggering

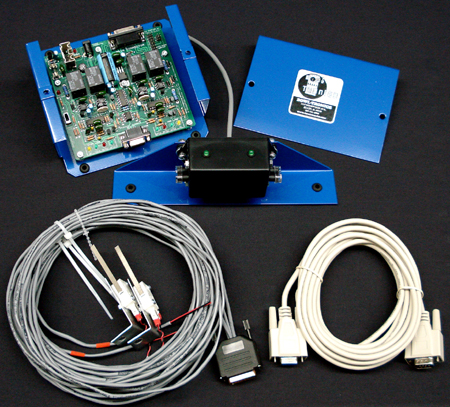

EVOLUTION SERIES 1 BALL TRIGGERING



  • Diagnostic LED's shows power, optic alignment, ball detect, cycle start, block out switch closure, and bypass switch mode
  • Informative PC board layout
  • D-sub type connectors for optics, machine hook up and auto score interface
  • Optional (AUTO) unlimited auto score interface
  • And much more!!!
  • Please specify what type of pinsetter and auto score you have when ordering


Product ID: BTE-S1. . . .$380.00

Product ID: BTE-S1/AUTO. . . .$415.00

​

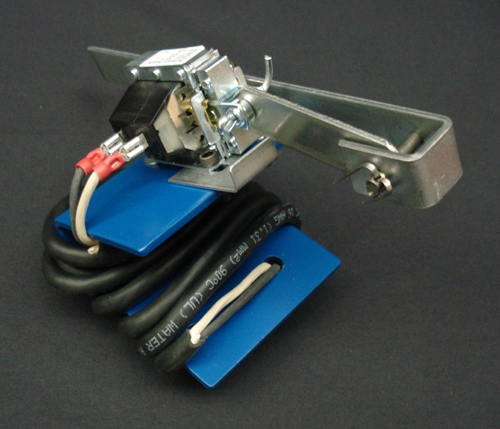

RAKE TRIP SOLENOID ASSEMBLY



  • Requires some type of electronic triggering
  • Allows you to utilize the quick rake drop feature on your A-2 Pinsetter
  • RTSA mounts to the OEM rake lift shaft (Shotgun)
  • Utilizes 24VAC solenoid no special power supply needed just use the 24VAC from the pinsetter





Part ID: RTSA. . . .$200.00



Foul Units

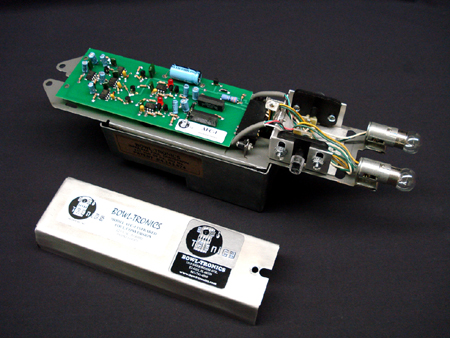

ASTRO INFRARED FOUL CONVERSION



  • Converts BRC's Astro Tele Foul to infrared
  • Diagnostic LED's shows alignment of optics
  • Easy installation utilizes the same foul unit
  • Shock protection circuitry
  • Durable TTL technology
  • As an incentive send us your foul unit and we will install the kit for FREE! Even minor repairs are FREE! If the foul unit needs repair it's a flat fee of $65.00 plus parts.





Product ID: AFC-1. . . .$225.00

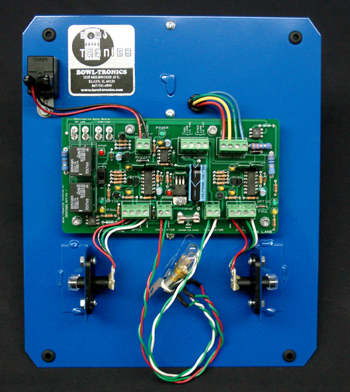

SENTINEL SERIES 1 FOUL UNIT



  • Diagnostic LED's shows power, optic alignment, foul detect, fuse error
    and bypass switch mode
  • Informative PC board layout
  • Unlimited auto score interface
  • Optional (W/PK) power pack if you don't have high voltage up front at foul line
  • And much more!!!
  • Please specify what type of pinsetter and auto score you have when ordering



Product ID: BTS-S1. . . . $395.00

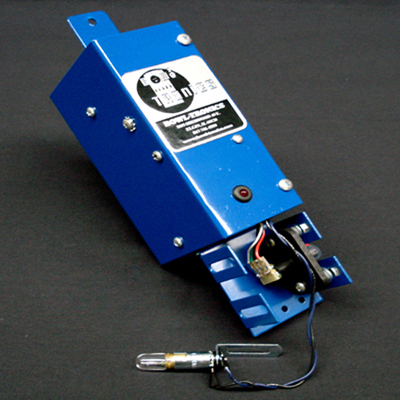

M-1 SINGLE LANE INFRARED FOUL UNIT



  • Diagnostic LED shows alignment of optic
  • Easy installation uses universal power cord
  • Shock protection circuitry
  • Durable TTL technology
  • M-1 designed to fit under single lane small division cover
  • Optional (W/PK) power pack if you don't have high voltage up front at foul line

  • Please specify what type of pinsetter and auto score you have when ordering



Product ID: M-1
Product ID: M-1 W/PK


Currently unavailable:


This product it is currently unavailable. That includes all parts for this product. If you have any questions please don't hesitate to contact us.

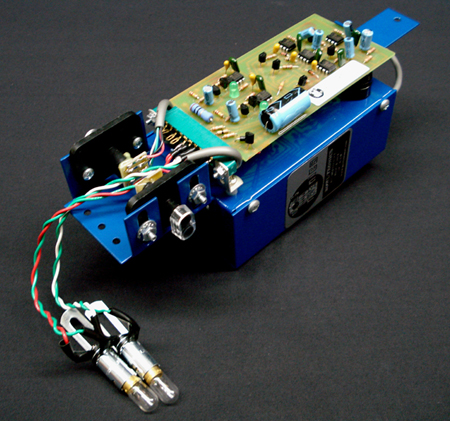

M-2-B DUAL LANE INFRARED FOUL UNIT



  • Diagnostic LED's shows alignment of optics
  • Easy installation uses universal power cord
  • Shock protection circuitry
  • Durable TTL technology
  • M-2-B designed to fit under small division cover
  • Optional (W/PK) power pack if you don't have high voltage up front at foul line
  • Please specify what type of pinsetter and auto score you have when ordering





Product ID: M-2-B
Product ID: M-2-B W/PK


Currently unavailable:


This product it is currently unavailable. That includes all parts for this product. If you have any questions please don't hesitate to contact us.



Infrared Ball Detects

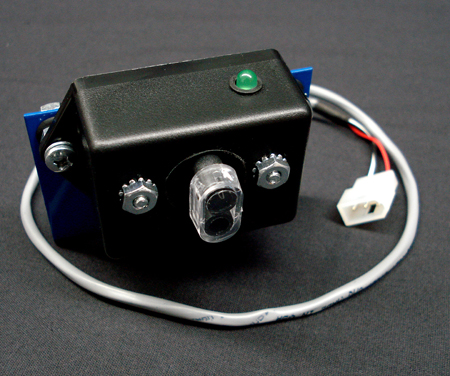

INFRARED BALL DETECT SINGLE 86, CCD, GS-X AND VECTOR



  • Works with 86 Scanner, CCD Camera, GS-X
  • Works with Vector Scoring 12VDC (-V)
  • Diagnostic LED shows alignment of optic
  • Easy installation uses OEM connector
  • Shock protection circuitry
  • Durable TTL technology



Part ID: IR OPTIC. . . .$105.00
Part ID: IR OPTIC-V. . . .$105.00

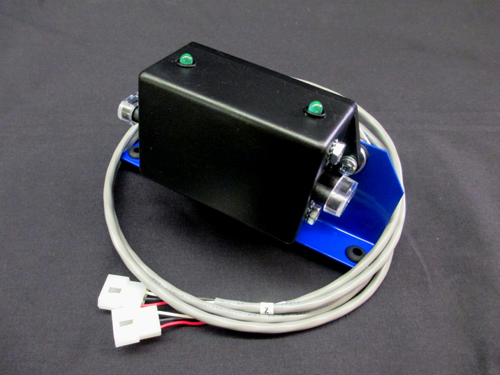

INFRARED BALL DETECT DUAL 86, CCD, GS-X AND VECTOR



  • Works with 86 Scanner, CCD Camera, GS-X
  • Works with Vector Scoring 12VDC (-V)
  • Diagnostic LED shows alignment of optic
  • Easy installation uses OEM connector
  • Shock protection circuitry
  • Durable TTL technology



Part ID: IR OPTIC2. . . .$200.00
Part ID: IR OPTIC2-V. . . .$200.00

​



Various Products For A & A-2

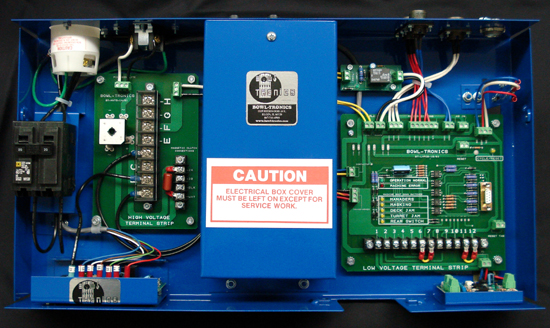

A-2 BRUNSWICK REPLACEMENT CHASSIS



  • Easily accessible high voltage terminal strip with protective cover
  • Informative PC board layout
  • 25 amp. magnetic clutch bridge rectifier
  • New hi-tech time delay module (TDM-X)
  • Or use our (BTSSR-D) Solid-State Relay instead of a TDM-X
  • 40 amp. main power contactor
  • Easily accessible low voltage terminal strip
  • Informative PC board layout
  • New and improved LED Diagnostic display for machines power, reset and switch functions.
  • New D-Sub connector for (BTDDM-1/C/BT)
  • All chassis connections are made with OEM receptacles


Product ID: BRC-CH-A2


Currently unavailable:


This product it is currently unavailable. That includes all parts for this product. If you have any questions please don't hesitate to contact us.

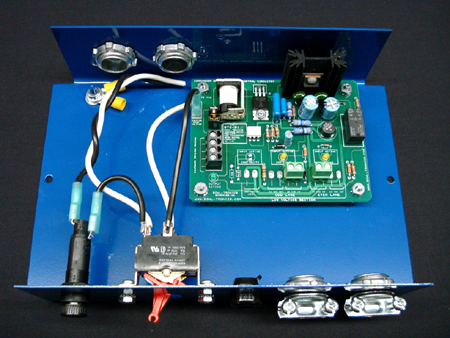

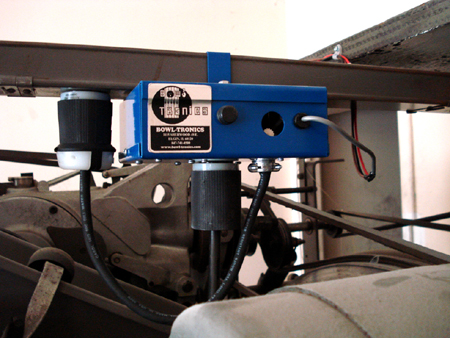

PINSETTER SAVER MOTOR CONTROL



  • Easy installation no high voltage wiring in the machines electrical box or channel
  • Turns off the motor when the machine is not being used by the bowler
  • Completely safe for motor
  • Soft starts motor to prolong life
  • Adjustable time delay from 3 to 5 minutes
  • Mechanic's push button to start machine motor running
  • Eliminates the unnecessary wear and tear of the pinsetter
  • Will save on electricity that would have been needlessly wasted
  • As a bonus shuts down accelerator/booster and ball lift motor for added savings Product ID (PS-1-AS)​​
  • Please specify the voltage of the pinsetter and if they're American or Japanese pinsetters when ordering.



Product ID: PS-1. . . .$340.00

Product ID: PS-1-AS. . . . $370.00

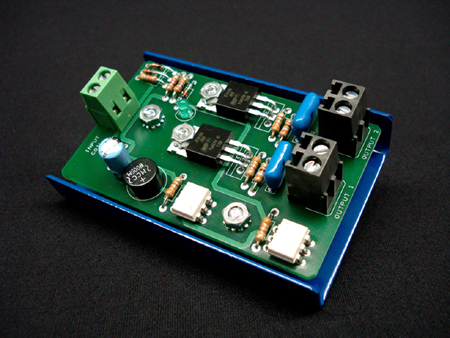

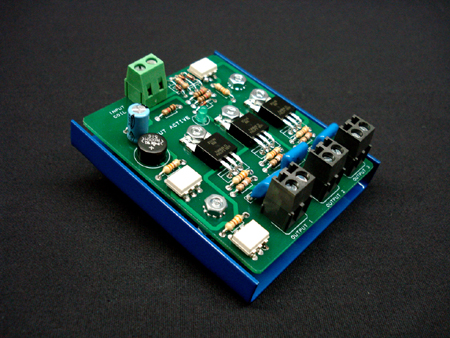

"A" RESET SOLENOID RELAY OR "A-2" MOTOR START RELAY



  • Solid-state switching (double pole)
  • No more burned up points or sticking relays
  • Easy installation
  • Outlast any points relay
  • Use as a "A" reset relay or "A-2" motor start relay
  • Now use to replace "A-2" Time Delay Module



Part ID: BTSSR-D. . . .$85.00

Part ID: BTSSR-DTDM. . . .$85.00



"A" MOTOR START RELAY



  • Solid-state switching (triple pole)
  • No more burned up points or sticking relays
  • Easy installation
  • Use as a "A" motor start relay
  • Outlast any points relay


Part ID: BTSSR-T

​
Currently unavailable:


This product it is currently unavailable. That includes all parts for this product. If you have any questions please don't hesitate to contact us.

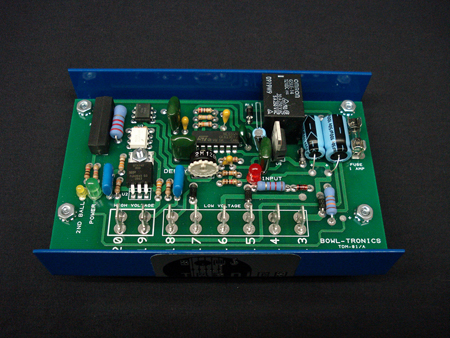

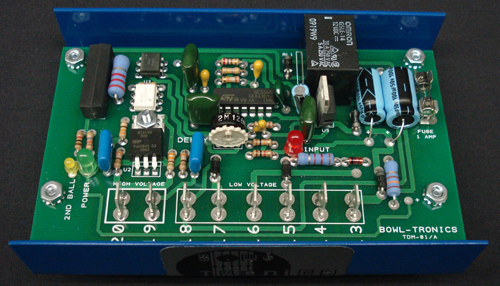

A-2 TIME DELAY MODULE EXTREME



  • Diagnostic LED's shows TDM-X's power, reset and 2nd ball functions
  • Time delay adjustable from (0 to 6 seconds)
  • Input and output short protection
  • Solid-state high voltage switching (no more burned out points)
  • Automatic block out function only allows machine to trigger once per cycle



Product ID: TDM-X. . . .$140.00

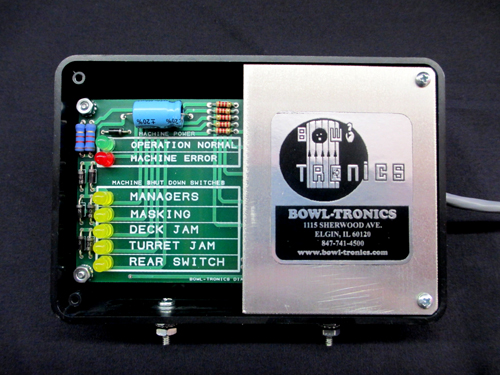

DIAGNOSTIC DISPLAY MODULE



  • Lets the mechanic know instantly why the blackout condition occurred so it can be corrected quickly
  • Diagnostic LED's shows functions of the deck jam, turret jam, managers, masking & rear switch
  • Diagnostic LED's shows if machine is running in a normal condition or if an error has occurred
  • Easy installation, mounts on top of the existing machine chassis Eliminates the unnecessary changing of relays, switches and transformers due to unsure blackout conditions
  • BTDDM-1/C/BT is for the Bowl-Tronics BRC-CH-A2 replacement chassis




Product ID: BTDDM-1/C

Product ID: BTDDM-1/C/BT



Currently unavailable:


This product it is currently unavailable. That includes all parts for this product. If you have any questions please don't hesitate to contact us.

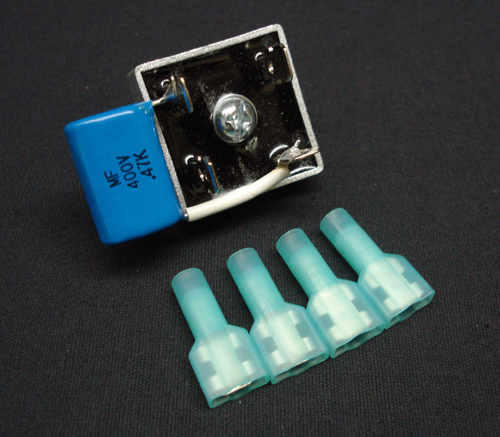

SELENIUM RECTIFIER REPLACEMENT



  • Replaces the old selenium rectifier with a 35 Amp Silicon Bridge Rectifier
  • Simple installation wire connectors and mounting hardware included




Part ID: BRIDGE W/CAP. . . .$40.00

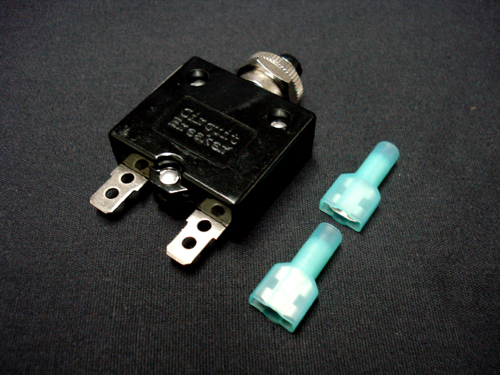

1 AMP HIGH VOLTAGE BREAKER KIT



  • Re-settable breaker to protect your pinsetters high voltage input to your transformer
  • Simple installation crimp style wire connectors and panel mount breaker





Part ID: BRK-1. . . .$30.00

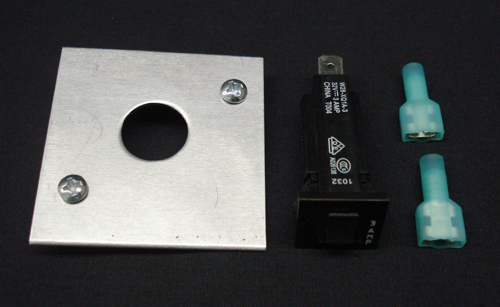

3 AMP LOW VOLTAGE BREAKER KIT



  • Replaces the old screw type 3.2 amp low voltage fuse
  • Re-settable breaker no more changing fuses
  • Simple installation wire connectors and mounting plate included



Part ID: BRK-3. . . .$30.00



15 AMP MOTOR BREAKER KIT



  • Re-settable breaker to protect your pinsetter motor when your motor doesn't have one
  • Simple installation crimp style wire connectors and panel mount breaker





Part ID: BRK-15. . . .$30.00
